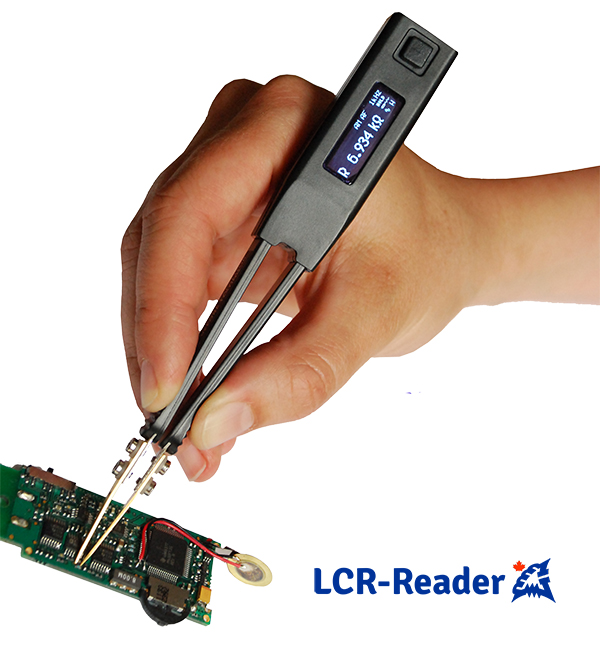

Smart Tweezers LCR-meter, the Latest in the Family: LCR-Reader

The "Budget" Alternative to Smart Tweezers LCR-meters

Updated Smart Tweezers; same great functionality with a lower price, lighter weight and sleeker look
LCR-Reader ManualLCR-Reader Manual
quickmenusQuick Start Guides
LCR-Reader Introductory VideoLCR-Reader Introductory Video
Smart Tweezers FAQLCR-Reader FAQ
LCR-Reader NewsLCR-Reader News and Press Releases
LCR-Reader Other MaterialLCR-Reader Photos and Documents
LCR-Reader BlogLCR-Reader Blog
Smart Tweezers BlogSmart Tweezers Blog
LCR-Reader Repair GuideLCR-Reader and Smart Tweezers Repair Guide
LCR-ReaderLCR-Reader


SMD Multimeter Test Tweezers

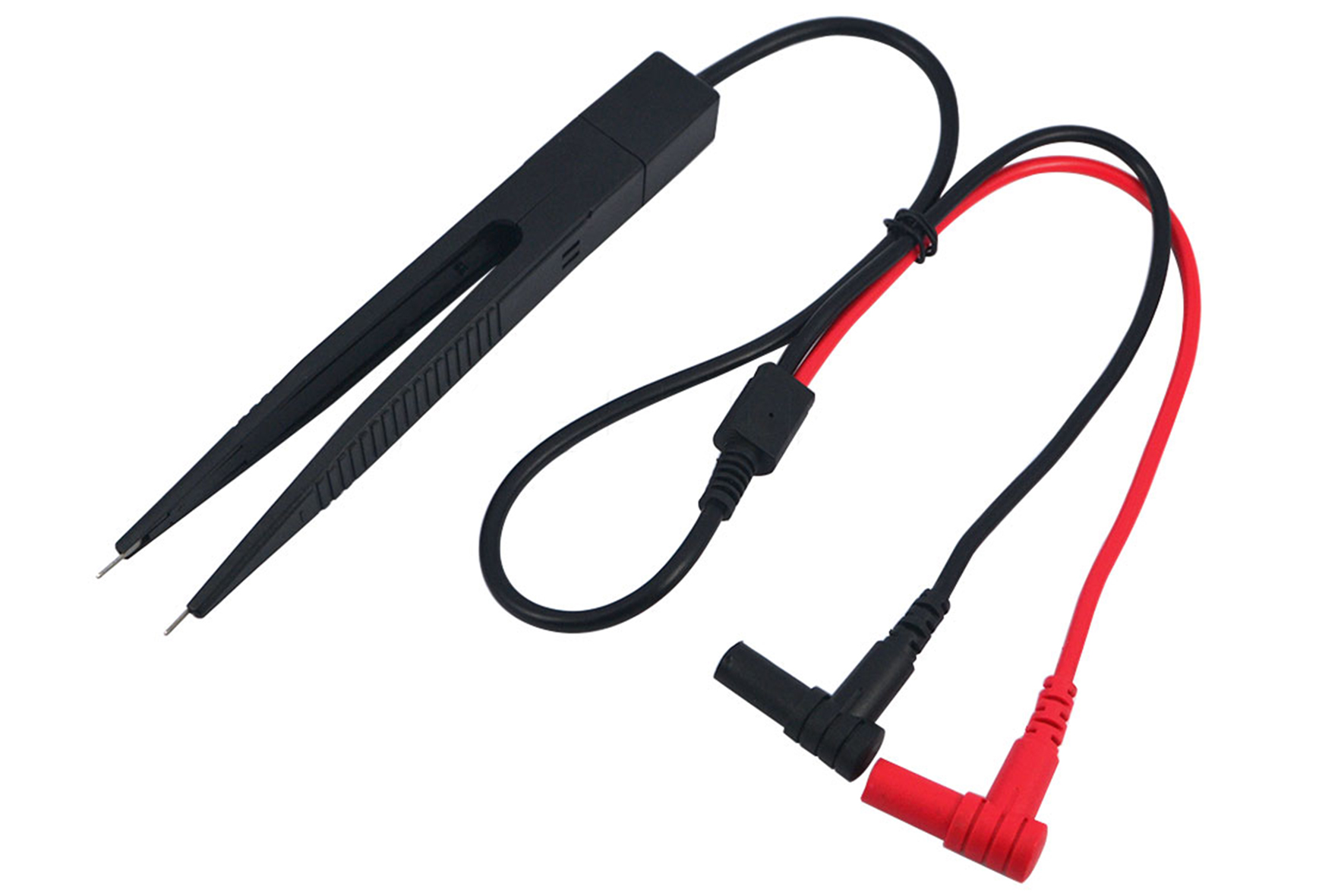

Siborg has begun offering a new device for multimeters: the SMD Multimeter Test Tweezers.

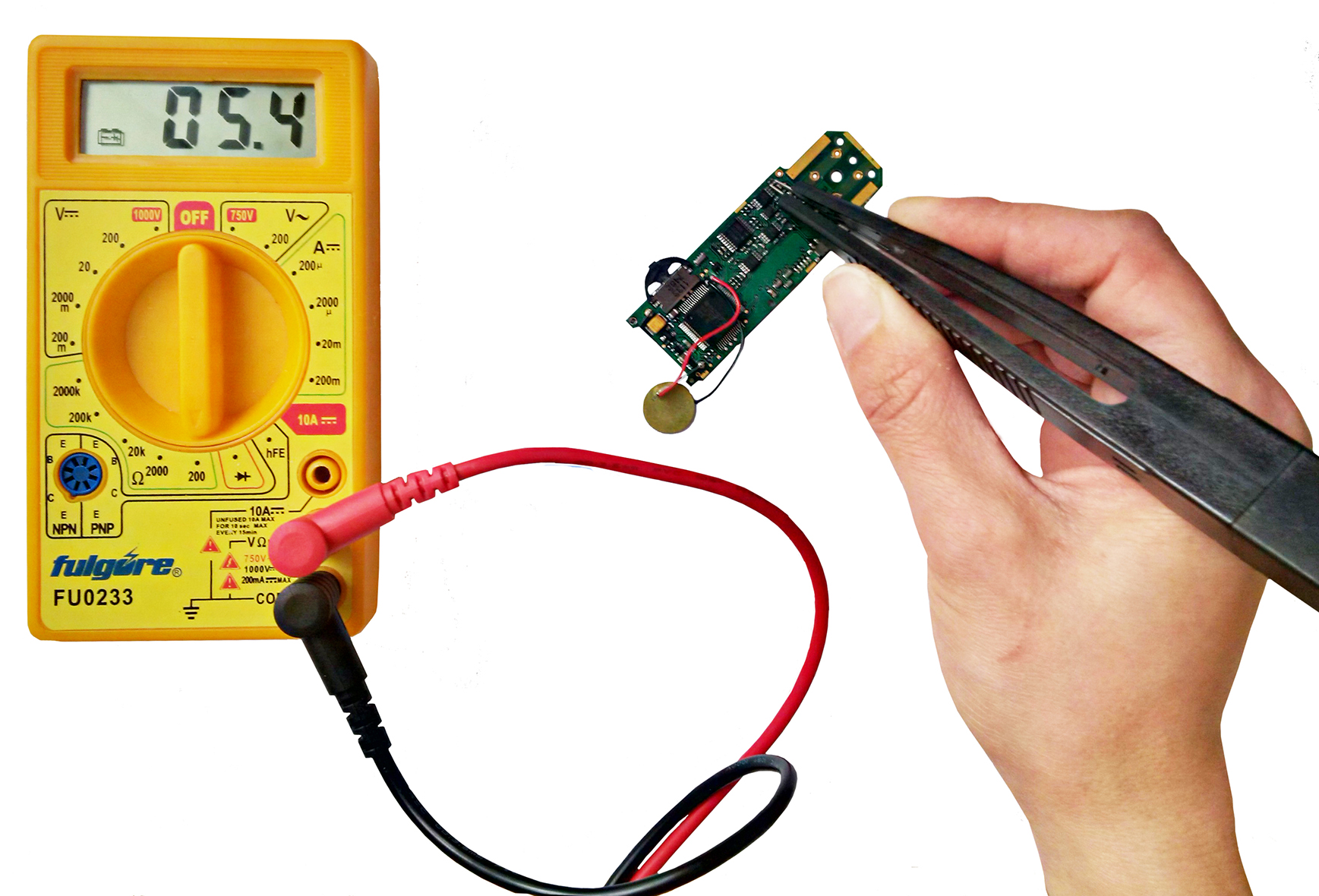

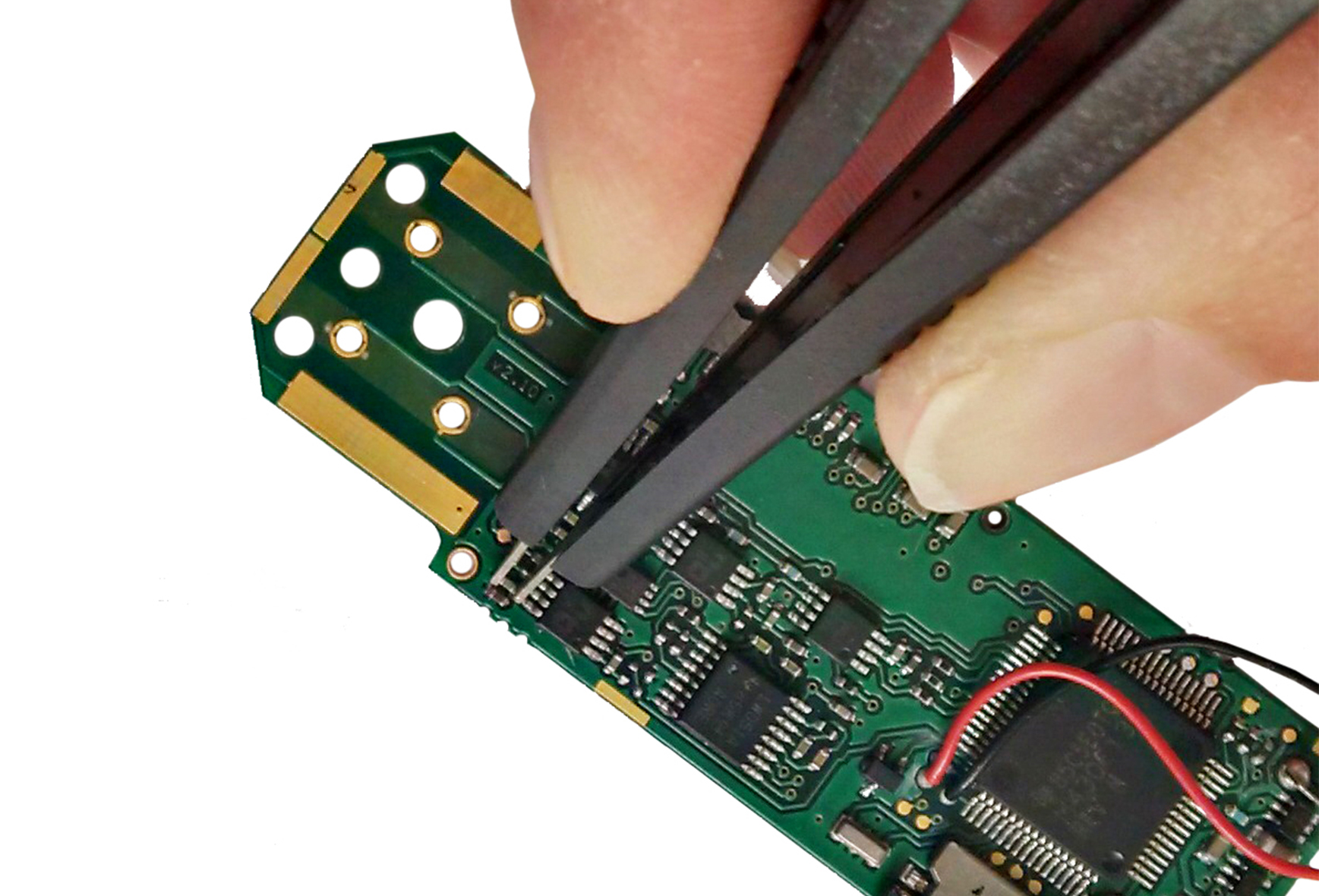

Siborg's new SMD Multimeter Test Clips are a simple solution to testing Surface Mount Technology with only-one hand instead of using the long, wire leads found on most multimeters. The tweezers are as easy to use as plugging them in and squeezing a component to a 0402 size (or 1005 metric code), either mounted on a crowded PCB or loose.

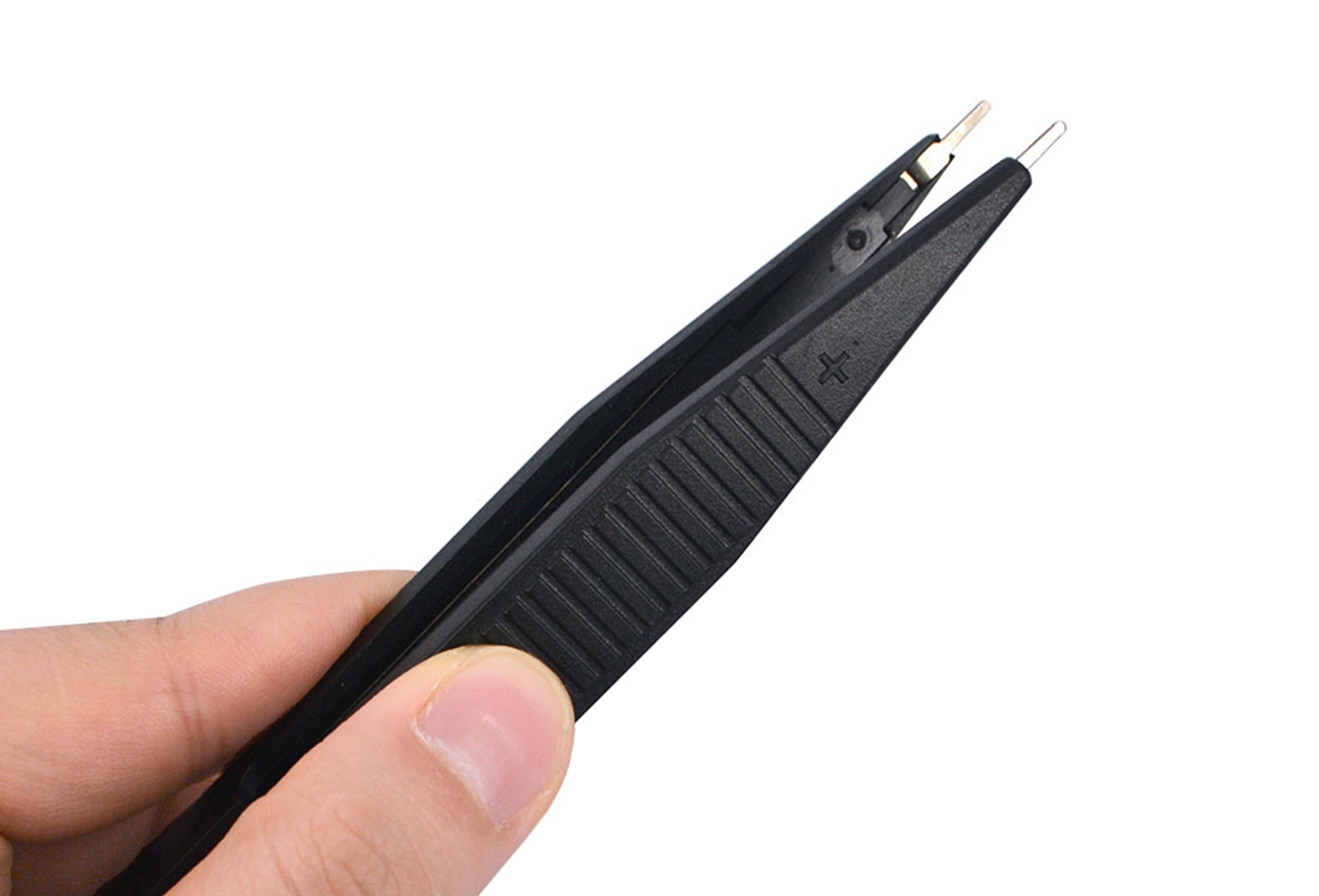

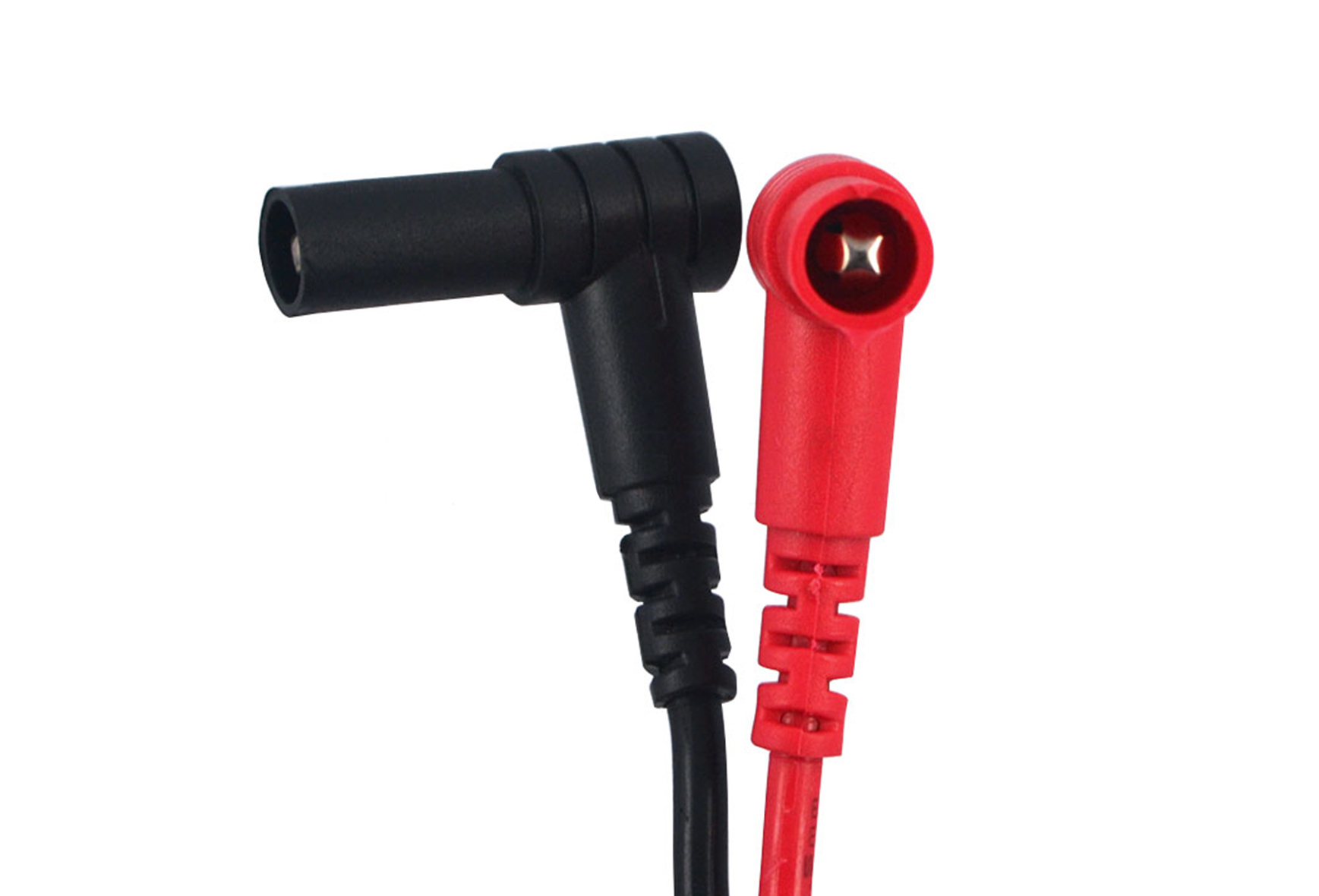

The device has colour coded arms to help determine the polarity of the components being tested. The SMD Multimeter Test Tweezers are best used for jobs that do not require high-accuracy. The device's offsets are explained in the Specifications table below.

Specifications

Size 168mm x 30mm
Cable Length 400mm
Weight 47 g
Colour Black and Red

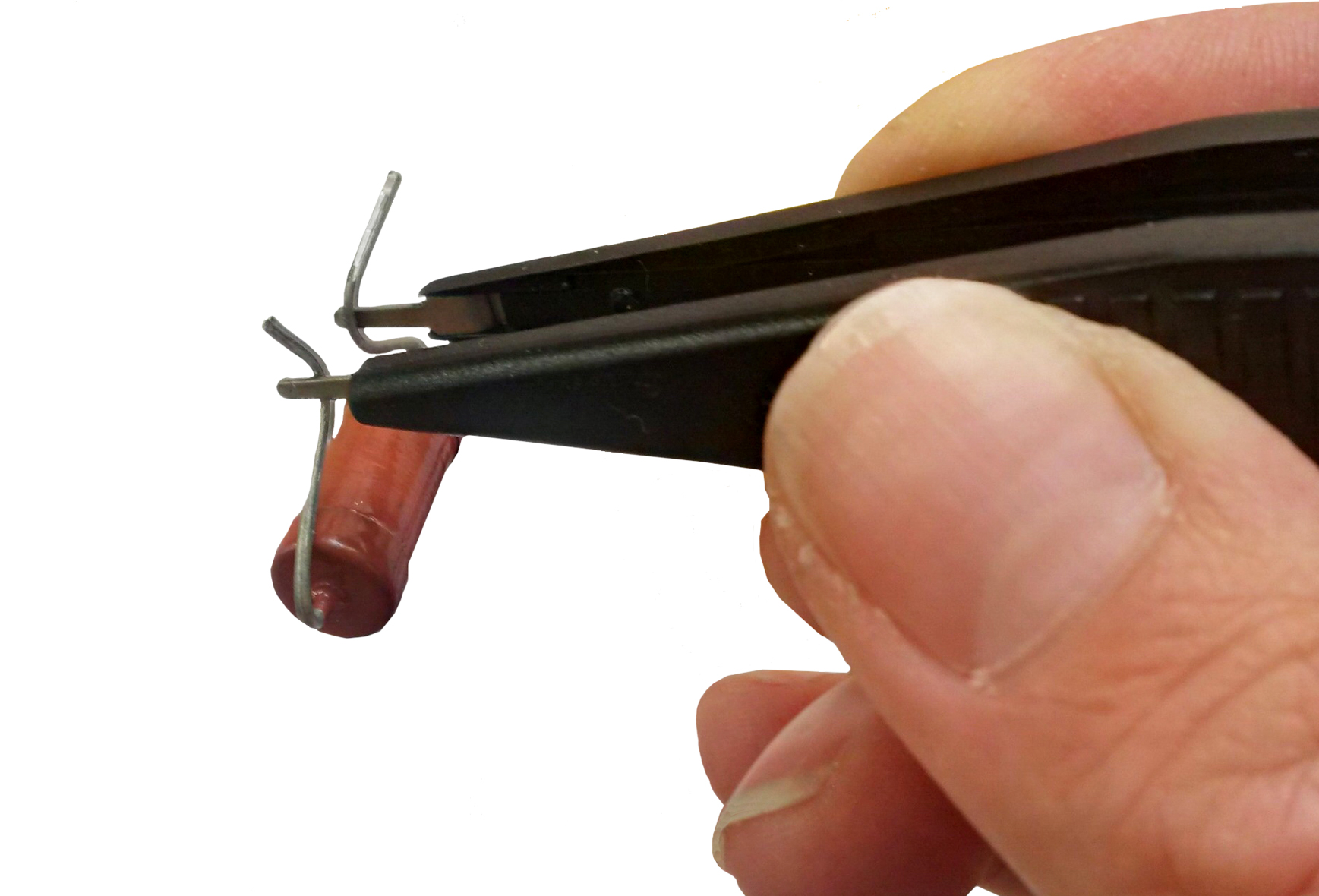

Advantages: Low-cost alternative to tweezer-type LCR-meters Fits most multimeters Tips reach components to a 0402 size (metric
Parasitics: Wires have a parastic resistance of 0.3 Ohms Inductance offset: 1 mH Parasitic Capacitance: 30 pF
